Diesel Straight Boom Lifts offer a quick lift speed to full height. They have a greater outreach than an equivalent knuckle boom and can be used above, equal to, or below the ground. Equipped with foam-filled lug tyres, they are ideal outdoors on uneven ground.

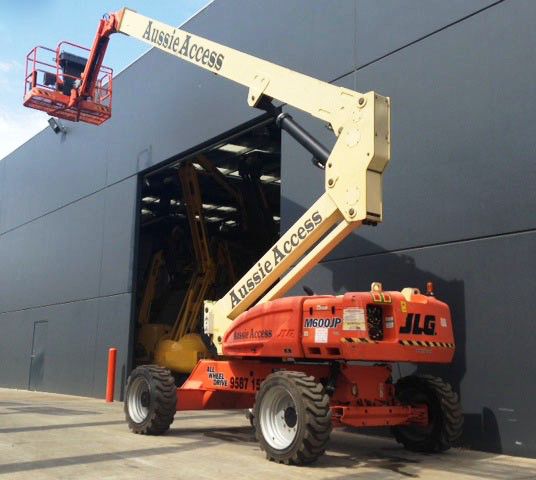

The M600JP bi-energy boom is battery operated with a Yanmar engine that powers the generator to charge batteries on the go. It has a jib rotation for unequalled access up, over & around obstacles. With non-marking lug tyres, it is best suited for firm level surfaces
Platform Height: | 13.72 m |
Working Height: | 15.50 m |
Outreach: | 11.20 m |
Width: | 2.30 m |
Load Capacity: | 227 kg |
Weight: | 7,181 kg |

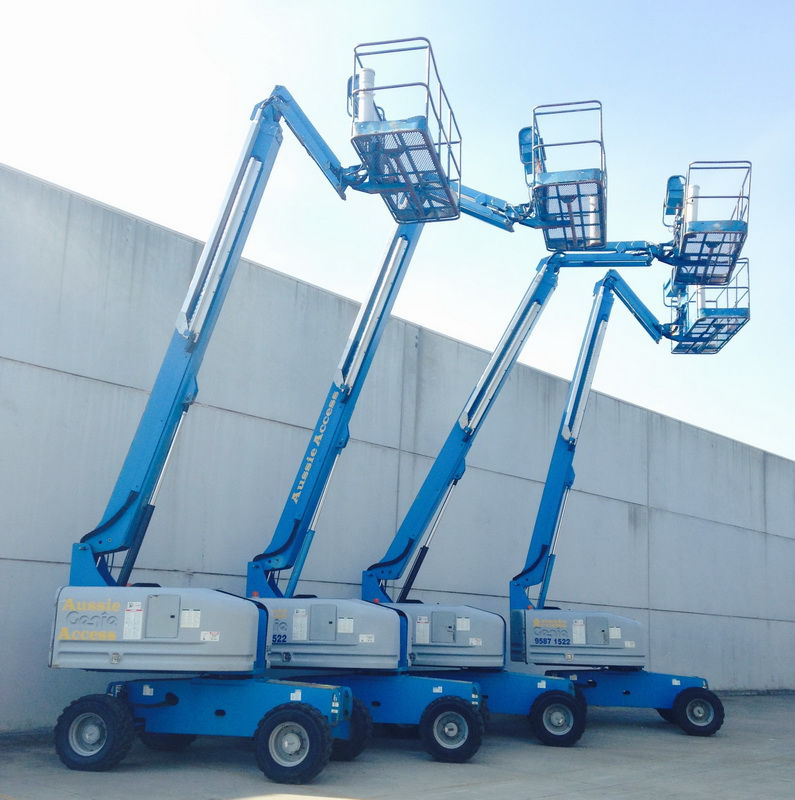

View Full Specs: | Genie S-45 (.PDF) Version |
Platform Height: | 18.29 m |
Working Height: | 20.29 m |
Outreach: | 13.23 m |
Width: | 2.44 m |
Load Capacity: | 230 kg |
Weight: | 7,497 kg |
View Full Specs: | JLG M600JP (.PDF) Version |
Platform Height: | 19.90 m |
Working Height: | 21.70 m |
Outreach: | 16.80 m |
Width: | 2.49 m |
Load Capacity: | 227 kg |
Weight: | 10,492 kg |

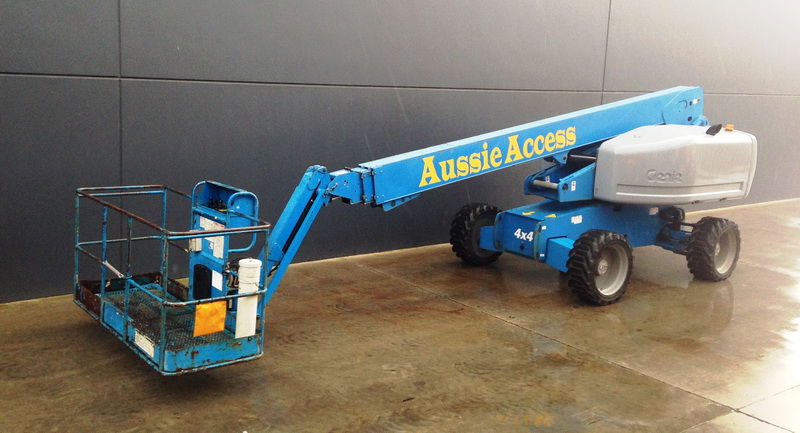

View Full Specs: | Genie S-65 (.PDF) Version |
Platform Height: | 25.75 m |
Working Height: | 27.75 m |
Outreach: | 21.45 m |
Width: | 2.43 m |
Load Capacity: | 350 kg |
Weight: | 16,650 kg |
View Full Specs: | Manitou 280TJ (.PDF) Version |
Platform Height: | 38.15 m |
Working Height: | 40.15 m |
Outreach: | 24.40 m |
Width: | 2.49 m |
Load Capacity: | 227 kg |
Weight: | 20,930 kg |

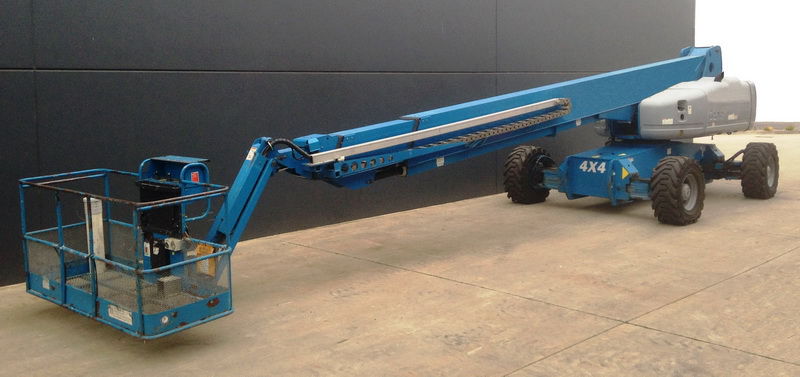

View Full Specs: | Genie S-125 (.PDF) Version |
